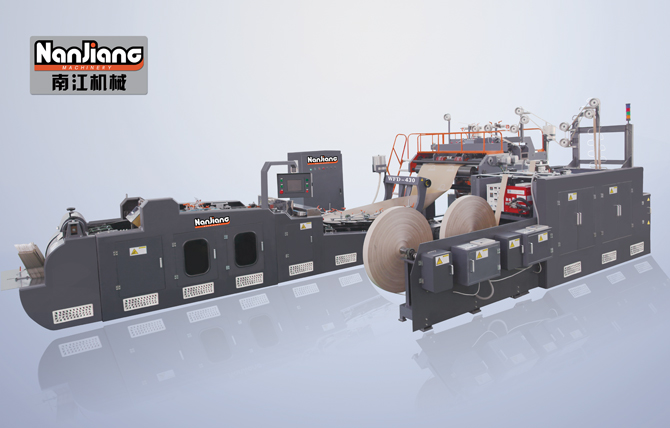

WFD-430 Roll Fed Fully Automatic Paper Bag with Handle Machine
WFD-430A卷筒式全...

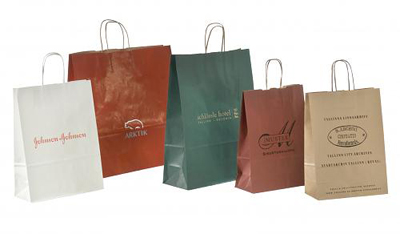

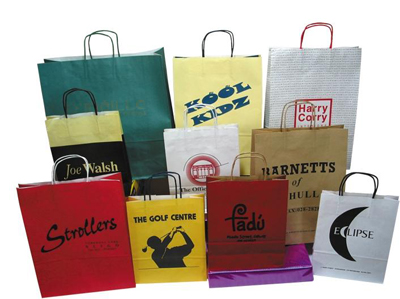

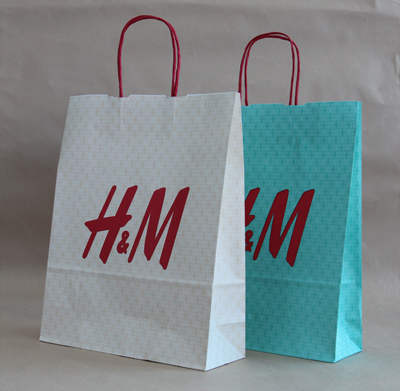

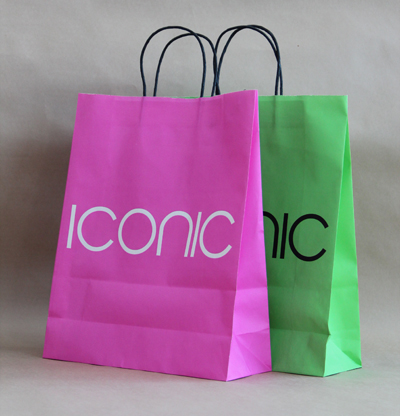

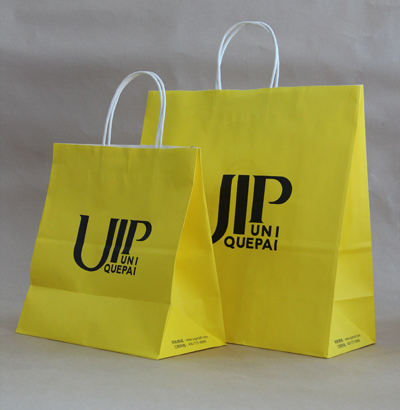

This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle or flat belt handle made of paper. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.

It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; This machine is an idea equipment for Twist or Flat handle square bottom paper bag. It is the quintessence both of home and abroad.

Main Parameter:

Paper Roll Width (mm)

670-1190

Bag tube length (mm)

280-600

Bag Width (mm)

240-430

Bag Bottom Width (mm)

80-150

Length of twisted rope(mm)

350-400

Paper Gram Weight (g/㎡)

70-150

Maximum Paper Roll Width (mm)

1500

Speed (bag/min.)

50-110

Total Power (kw)

33

Machine Weight (Ton)

20

Machine Dimension (L*W*H)

15000*3000*2500mm

Video
